BT510

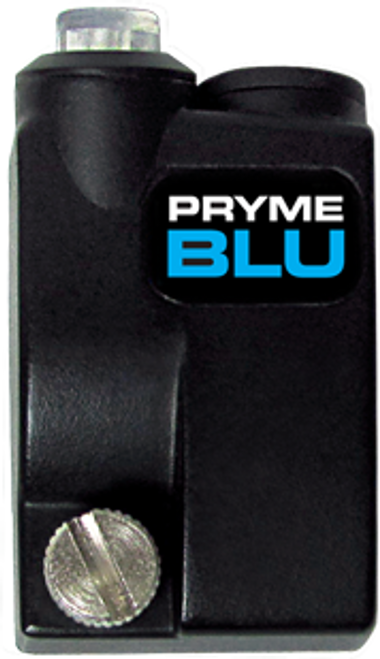

PRYME BLU BLUETOOTH ADAPTER FOR ICOM COMPATIBLE TWO WAY RADIOS

The Talk button on the PRYME BLU Adapter BT510 will function as a Push-to-Talk button for your two-way radio once a wireless audio accessory is successfully paired to the adapter. Multifunction Talk Switch Used to place the PRYME BLU Adapter in pairing mode. Once paired with an audio accessory, this switch is used to activate the Push-To-Talk function of the two-way radio.

Once your PRYMEBLU Adapter BT 510 and wireless Bluetooth headset have been paired together you will be able to monitor received signals that will be heard over your Bluetooth headset’s speaker. When transmitting, the operator’s voice is picked-up by the microphone in the Bluetooth headset. The Push-to-Talk can be activated by pressing and holding the Talk button on the PRYME BLU Adapter or by using an optional PRYMEBLU Wireless Bluetooth PTT (model BT-PTT, sold separately).

The PRYME BLU Adapter BT-510 allows you to use a compatible wireless Bluetooth headset or other audio accessory with your two-way radio. The PRYME BLU Adapter is compatible with thousands of off the shelf consumer audio accessories and pairs easily, allowing you to operate wirelessly.

• Compatible with thousands of readily available Bluetooth headsets and other audio accessories.
• Easy pairing process. Store paired connections to the wireless headsets even if the powered off or removed from the two-way radio.
• Several Push-To-Talk options: use the PTT button on the PRYMEBLU adapter to initiate transmissions
• RX and TX audio is automatically routed to the two-way radio or the appropriate wireless or wired audio accessory depending on what accessories are connected to the PRYMEBLU adapter.
• Maximum Range Approximately 10meters (33 feet)
• Bluetooth Version 2.1 (can pair multiple devices - depending on your headset).
• Bluetooth Compliance: Bluetooth Audio Accessories with version 1.1 or higher.
• All current models Powered by Radio. NO BATTERY CHARGER NEEDED!
• Operating Temperature Range -20C to 75C
• Storage Temperature Range -40C to 150C
• Operating Voltage: 5 to 9 VDC
• Current Requirement: approx 50 mA (80 mA peak)
• Power Source: Radio battery, 7.5 VDC typical
• Status LED indicates connection to a compatible wireless accessory.
• Patented "Smart Switch" feature automatically routes RX and TX audio to the appropriate wireless or wired audio accessory depending on what accessories are connected to the PRYMEBLU Adapter. When no audio accessories are connected, audio is routed to the radio's internal speaker and microphone.
• Most (multi pin connector) models are powered by the radio and do not require any batteries or charging.
• Several Push-to-Talk options: use the PTT button on the PRYMEBLU adapter to initiate transmissions, use the optional PRYMEBLU wireless Push-to-Talk.
• Allows you to use a wireless Bluetooth headset with your two-way radio in place of a speaker microphone or wired audio accessory.

PRYME BT-510 BLUETOOTH ADAPTOR for ICOM Radios:

This model fits all ICOM Multi-pin connector radios including IC-F3061T/S, IC-F30G, IC-F30GS, IC-F30GT, IC-F3161, IC-F31GS, IC-F31GT, IC-F4061T/S, IC-F40G, IC-F40GS, IC-F40GT, IC-F4161, ICF-4161, IC-F50, IC-F50V, ICF60, IC-F60V, IC-F70, IC-F80, IC-M88 and most IC-F30, F40, F50, F60, F70, F80, and F90 series radios.

PLEASE NOTE THAT THE BT-510 DOES NOT HAVE THE EXTERNAL ACCESSORY FEATURE FOUND ON MOST OTHER MODELS AND THEREFORE CANNOT USE THE PTT-5 OR SIMILAR ITEMS.

PRYME BLU BT-510 ICOM RADIO BLUETOOTH HEADSET ADAPTER 500 SERIES OWNERS MANUAL
