BT533

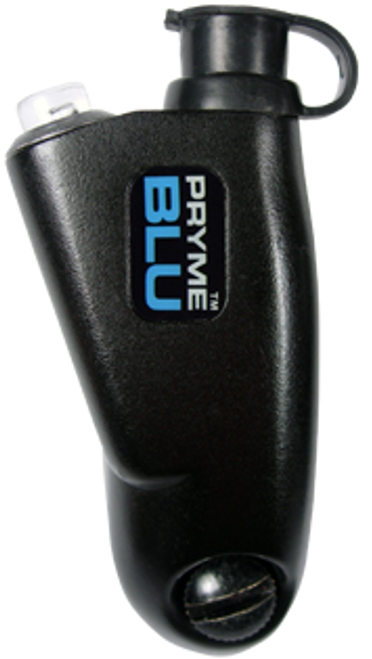

PRYME BLU BLUETOOTH ADAPTER FOR MOTOROLA PRO SERIES COMPATIBLE 2-WAY RADIOS

The Talk button on the PRYME BLU Adapter BT533 will function as a Push-to-Talk button for your two-way radio once a wireless audio accessory is successfully paired to the adapter. Multifunction Talk Switch Used to place the PRYME BLU Adapter in pairing mode. Once paired with an audio accessory, this switch is used to activate the Push-To-Talk function of the two-way radio.

Once your PRYMEBLU Adapter BT 533 and wireless Bluetooth headset have been paired together you will be able to monitor received signals that will be heard over your Bluetooth headset’s speaker.  When transmitting, the operator’s voice is picked-up by the microphone in the Bluetooth headset.  The Push-to-Talk can be activated by pressing and holding the Talk button on the PRYME BLU Adapter or by using an optional PRYMEBLU Wireless Bluetooth PTT (model BT-PTT, sold separately).

The PRYME BLU Adapter BT-533 allows you to use a compatible wireless Bluetooth headset or other audio accessory with your two-way radio. The PRYME BLU Adapter is compatible with thousands of off the shelf consumer audio accessories and pairs easily, allowing you to operate wirelessly.

• Compatible with thousands of readily available Bluetooth headsets and other audio accessories.
• Easy pairing process. Store paired connections to the wireless headsets even if the powered off or removed from the two-way radio.
• Several Push-To-Talk options: use the PTT button on the PRYMEBLU adapter to initiate transmissions.
• RX and TX audio is automatically routed to the two-way radio or the appropriate wireless audio accessory depending on what is connected to the PRYMEBLU adapter.
• Status LED indicates connection to a compatible wireless accessory.
• Maximum Range Approximately 10meters (33 feet)
• Bluetooth Version 2.1 (can pair multiple devices - depending on your headset).
• Bluetooth Compliance: Bluetooth Audio Accessories with version 1.1 or higher.
• All current models Powered by Radio. NO BATTERY CHARGER NEEDED!
• Operating Temperature Range -20C to 75C
• Storage Temperature Range -40C to 150C
• Operating Voltage: 5 to 9 VDC
• Current Requirement: approx 50 mA (80 mA peak)
• Power Source: Radio battery, 7.5 VDC typical
• Patented "Smart Switch" feature automatically routes RX and TX audio to the appropriate wireless or wired audio accessory depending on what accessories are connected to the PRYMEBLU Adapter. When no audio accessories are connected, audio is routed to the radio's internal speaker and microphone.
• Several Push-To-Talk options: use the PTT button on the PRYMEBLU adapter to initiate transmissions, or use an optional PRYME Quick-Disconnect wired audio accessory such as PTT-5. (Optional accessories not included.).
• Enhanced with optional wired PRYME Quick-Disconnect earphone or audio accessory for additional privacy. (Optional accessories such as SPM-1205, 1305, 1405... not included).

PRYME BT-533 BLUETOOTH ADAPTOR for MOTOROLA Radios:

This model fits these Motorola PRO Series compatible radios including: CBPRO, GP1280, GP140, GP320, GP328, GP329, GP338, GP339, GP340, GP360, GP380, GP640, GP650, GP680, GP960, HT1250, HT1250LS, HT1550, HT1550XLS, HT750, JT1000, MTX8250, MTX8250LS, MTX850, MTX850LS, MTX9250, MTX950, PR860, PRO5150, PRO5350, PRO5450, PRO5550, PRO5750, PRO7150, PRO7350, PRO7450, PRO7550, PRO7750, PRO9150, PTX700, PTX760, PTX780 and more!

PRYMEBLU BT-533 MOTOROLA PRO SERIES RADIO BLUETOOTH ADAPTER OWNERS MANUAL
