BTMOBILE

PRYMEBLU MOBILE WIRELESS BLUETOOTH HEADSET CABLE

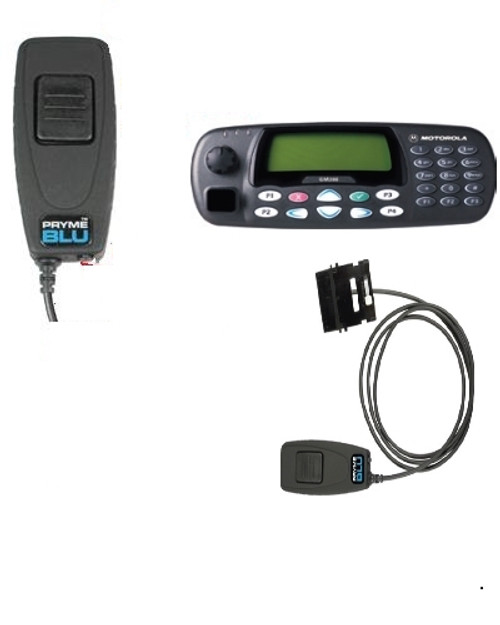

The PrymeBLU® Adapter allows you to use a compatible wireless Bluetooth headset or other audio accessory with a MOBILE two-way radio. The Adapter plugs into and gets its power from any automobile cigarette-lighter style outlet. The adapter's replaceable interface cable plugs directly into the microphone jack of your mobile two-way radio. The BT-Mobile works with thousands of off-the-shelf consumer Bluetooth headsets (not included). Replace that old fashion speaker mic and start using your dual sync Bluetooth headset for both your two way mobile and your cell phone. (Bluetooth headset must be dual sync).

• Radio Connector connects the adapter to the MIC Jack on the front of the mobile two-way radio.

• Status LED - The LED ashes messages that let the user know the current status of the PRYMEBLU Adapter.

• Multifunction Talk Switch - This button is used to place the PRYMEBLU Mobile Adapter in pairing mode. It can also be used to activate the Push-To-Talk function of the two-way radio.

• Power Plug - The body of the adapter plugs into a common vehicle cigarette lighter plug.

• Allows you to use a Bluetooth headset to transmit over your mobile 2-way radio (receive audio is heard over the mobile's radio speaker)

• Compatible with thousands of readily available Bluetooth headsets (not included)

• Easy pairing process. Stores paired connection to the wireless headset even if the Radio is powered off or adapter is removed from the 2-way radio.

• No time delay on Transmit Audio messages.

• Powered by the automobile using a Car Power Plug

• Compatible with a wide range of different mobile radios. Simply choose the correct model adapter for your radio.

The BT-MOBILE WORKS WITH:

BT-5M00J - Icom - 2 Pin Connector

IC-400PRO, IC-F1020, IC-F110, IC-F110S, IC-F121, IC-F121S, IC-F1710, IC-F1721, IC-F1721D, IC-F1810, IC-F1821, IC-F1821D, IC-F2020, IC-F210, IC-F210S, IC-F221, IC-F221S, IC-F2710, IC-F2721, IC-F2721D, IC-F2810, IC-F2821, IC-F2821D, IC-F310, IC-F310S, IC-F320, IC-F320S, IC-F410, IC-F410S, IC-F420, IC-F420S, IC-F5021, IC-F5061, IC-F510, IC-F520, IC-F521, IC-F6021, IC-F6061, IC-F610, IC-F620, IC-F620TR, IC-F621, IC-F621TR, IC-F9511, IC-F9511HT, IC-F9521

BT-5M01J - Kenwood - Rear Aux. Jack Molex

TK-6110, TK-630, TK-7102, TK-730, TK-760, TK-762, TK-830, TK-780, TK-8102, TK-840, TK-860, TK-862, TK-863, TK-880, TK-885, TK-930, TK-940, TK-980, TK981

BT-5M21J -  Kenwood - Front Mic Jack RJ45

TK-7180, TK-7189, TK-8180, TK-8189

BT-5M03J - Motorola - 16 Pin Rear Aux. Jack

CM200, CM300, CDM1250, CDM1550, CDM750, GM Series, Maxtrac Series

BT-5M33 - Motorola

XTL Mobile Series

BT-5M83 - Motorola

MotoTRBO Mobile Series

BT-5M02J - Vertex - Rear Aux. Jack DB-15

VX-2100, VX-2200, VX-4100, VX-4200

PRYMEBLU BT MOBILE OWNERS MANUAL
