The PRYME Quick Disconnect (QD®) is available for a wide range of radios, offering additional convenience and simplicity.

Pryme Multi-Pin Radio Quick Disconnect Adapter PA Series

$69.98 $59.98
(You save $10.00)
SKU:
PRY-QDX05
Availability:
Ships directly from Pryme
Shipping:
Free Shipping
Bulk Pricing:
Buy in bulk and save

QD X05 ADAPTER

PRYME QUICK DISCONNECT ADAPTER FOR MUTLI-PIN RADIOS

Tired of screwing down your headsets... cut your prep time down to the turn of the wrist with the Quick Disconnect Adapters by PRYME which allows the use of a PRYME Quick Disconnect (x05) style audio accessory with compatible Icom, Kenwood, Motorola, Vertex portable radios.  PRYME Quick Disconnect adapters allow the user to easily and quickly connect and disconnect a PRYME QD style audio accessory and are secure enough to be used in most situations.

PRYME’s QuickDisconnect adapters provide both security and usability. Just install the adapter onto the radio and then plug the QD accessory (optional) into the six-pin QD connector. The push-pull mechanism locks the accessory in place during use, but still allows you to quickly remove it from the radio without tools if you need to.

All PRYME Quick Disconnect accessories are interchangeable with all PRYME Quick Disconnect Adapters and Pigtails, making communications convenient for large businesses that use multiple brand radios. The PRYME Quick Disconnect pigtails and adapters also prevent wear and tear, prolonging the life of your radios. Allows the use of a PRYME Quick Disconnect (x05) style audio accessory with compatible listed portable radios.

Use with any x05 PRYME accessory including: SPM-105, SPM-305EB, SPM-405A, SPM-405D, SPM-1205, SPM-1305, SPM-1405, SPM-1505, SPM-2502A/J, SPM-2005, SPM-2105, SPM-2305, SPM-3105, SPM-3305 and SPM-4105 - Sold Separately.

Here is a list of Manufacturers and the Model Numbers of the radios each PA model will fit. If you do not find your model please contact us for assistance.

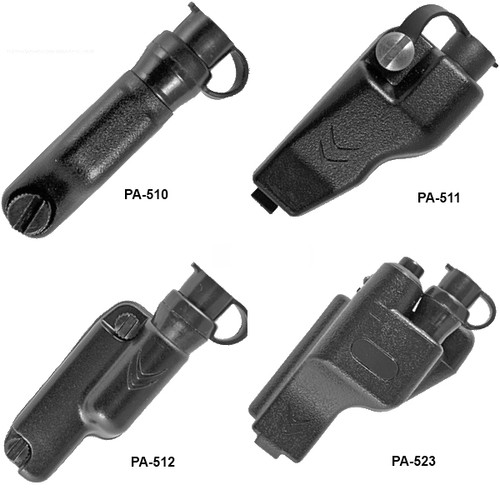

PA-510 ICOM X10 Multi-Pin Radios: IC-F306IT/S, IC-F30G, IC-F30GS, IC-F30GT, IC-F3161, IC-F31GS, IC-F31GT, IC-F406IT/S, IC-F40G, IC-F40GS, IC-F40GT, IC-F4161, IC-F50, IC-F50V, IC-F60, IC-F60V, IC-F70, IC-F80, IC-M88 Series

PA-511 KENWOOD X11 Multi-Pin Radios: NX-200, NX-300, TK-190, TK-2140, TK-2180, TK-280, TK-290, TK-3140, TK-3148, TK-3180, TK-380, TK-385, TK-390, TK-480, TK-481, TK-5210, TK-5220, TK-5310, TK-5320, TK-5400 Series

PA-512 VERTEX X12 Multi-Pin Radios: Older models with multi-pin connectors (note: NOT compatible with VX-537 or NYPD models) including:  VX-310, VX-500, VX-510, VX-520, and VX-520UD

PA-523 MOTOROLA X23 Multi-Pin Radios: All JEDI style connectors including: GP900, GP9000, HT1000, MT1500, MT2000, MTS2000, MTX8000, MTX838, MTX900, MTX9000, MTX960, MTXLS, PRI500, X1500, XTS2000, XTS2500, XTS3000, XTS3500, XTS5000, GP1200 Series

PA-532 VERTEX X32 Multi Pin Radios: VX-820, VX-821, VX-824, VX-829, VX-871, VX-874, VX-879, VX-920, VX-921, VX-924, VX-929, VX-971, VX-974, VX-979, VX-P820 (P25 series-all) , VX-P920 (P25 series-all)

PA-533 MOTOROLA X33 Multi Pin Radios: CBPRO, GP1280, GP140, GP320, GP328, GP329, GP338, GP339, GP340, GP360, GP380, MTS8250XLS, MTX850, MTX850XLS, MTX9250, MTX950, PR860, PRO5150, PRO5350, PRO5450

PA-543 RELM X43 Multi Pin Radios: RPU3000A, RPU3600, RPU3600APLUS, RPU7500, RPV3000A, RPV3600, RPV3600APLUS, RPV7500

PA-573 ICOM X00IL Two Pin Radios: IC-3GT, IC-F11, IC-F11S, IC-F21, IC-F21BR, IC-F21GM, IC-F21S, IC-F3011, IC-F3021, IC-F31, IC-F3G, IC-F3GS, IC-F4011, IC-F4021, IC-F43GS, IC-F43GT, IC-F43TR, IC-F4G, IC-F4GS, IC-F4GT, IC-U82, IC-V8, IC-V82

PA-583 MOTOROLA X83 Multi Pin Radios: MotoTRBO and  APX 7000 including: XPR6300, XPR6500, XPR6550

Please see PYRME for the most up to date version of this warranty.

PRYME Radio Products warrants this product against defects in materials or workmanship for a period of one year from the date of retail purchase.

PRYME will repair or replace a defective unit, at our option, without charge for parts or labor. The limited warranty is extended only to the original purchaser and is valid only to consumers in the United States and Canada. It does not cover damage or failure caused by or attributable to Acts of God, abuse, misuse, improper or abnormal usage, faulty installation, improper maintenance, lightning, or other incidences of excessive voltage, or any tampering or repairs by other than a PRYME authorized repair facility. It does not cover replacement of consumable parts, transportation costs, or damage in transit. Repair or replacement under the terms of this warranty does not extend the terms of this warranty.

This warranty can only be modified by an office of PRYME Radio Products, and then only in writing. Should this product prove defective in workmanship or material, the consumer’s sole remedies shall be such repair or replacement as provided by the terms of this warranty. Under no circumstances shall PRYME Radio Products be liable for any loss or damage, direct, consequential, or incidental, arising out of the use of or inability to use this product. Some states do not allow limitations on how long an implied warranty lasts or the exclusions or limitations of incidental or consequential damages, so the above limitations or exclusions may not apply to you.

This warranty gives you specific legal rights. You may also have other rights, which may vary, from state to state. For support or warranty service on your PRYME product, contact us at 1-800-666-2654 or visit us on the web at www.PRYME.com.

© 2012 PRYME Radio Products, Brea CA. All rights reserved. PRYME® and PRYME BLU™ are trademarks owned by PRYME Radio Products. All other product or service names are the property of their respective owners.

DISCLAIMER: The Bluetooth wireless link used by PRYME BLU products is an open standard, unsecured technology. As such, it is not recommended for first-responder or other mission critical users.
