Pryme SPM100 "OBSERVER" is a Light Duty Speaker Microphone for high-noise environments

OVERVIEW
WARRANTY
PRODUCT REVIEW

SPM100 OBSERVER

PRYME SPM-100 SPEAKER MICROPHONE

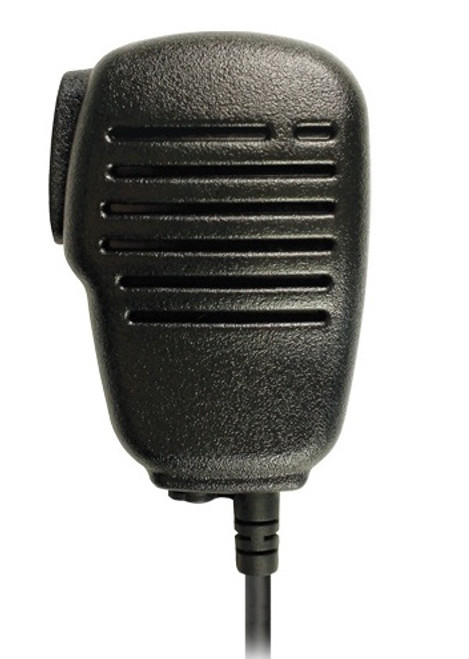

The SPM-100 OBSERVER is a lightweight, compact remote speaker microphone designed for use in light-duty applications. Each microphone features a high-quality electric condenser style element that produces excelled transmitted audio clarity. The SPM-100 is meant to be worn on the user's lapel, duty belt, or shoulder epaulet. It secures to the user's clothing by way of a large metal-reinforced clip which rotates 360 degrees. The SPM-100 features a powerful built-in speaker that should provide loud receive audio in all but the noisiest of environments. For additional privacy and security, use the OBSERVER with an optional earphone (sold separately). (3.5mm jack)

•For additional privacy and security, the SPM-100 series also has a built-in earphone jack, allowing operation of an optional remote earphone with a standard 3.5 mm plug such as our LOOKOUT™, RECON™ or SCOUT™

The SCOUT earphone option (EH-1289SC) is a D-Ring style as shown in the picture above. It is a Listen-Only Medium Duty Earphone with a coiled 15 inch cable.

The RECON earphone option (EH-1389SC) is an acoustic tube earphone as shown is the picture above. It features a twist connector. It is a Medium Duty Earphone with a coiled 15 inch cable.

The LOOKOUT earphone option (EH-389SC) is a soft rubber ear-hook (as shown is the picture above) that helps keep the earphone in place during normal activities. The earphone provides hours of comfort. It is a Light Duty Earphone with a coiled 15 inch cable.

• 1 year manufacturer warranty

•High-quality electret condenser-style microphone element that produces excellent transmit audio as well as a powerful speaker

•Spring loaded, metal reinforced clothing clip which can be rotated 360°

•Heavy-duty construction, featuring polyurethane cable, rubber, and high-impact polycarbonate

•Durable polycarbonate housing for long product lifespan

Here is a list of Manufacturers and the Model Numbers of the radios each SPM100 will fit. If you do not find your model please contact us for assistance.

SPM-101 BLACKBOX "Bantam" X01 Two Pin Radios: Bantam Series (Kenwood Connector)

SPM-103 BLACK BOX X03 Two Pin Radios: Regular and Plus Series (Motorola Connector)

SPM-101 HYT X01 Two Pin Radios: TC-268, TC-268S, TC-270, TC-368, TC-368S, TC-370

SPM-100-H3 HYT X03s Two Pin Radios: TC-1600, TC-500, TC-600, TC-610, TC-620, TC-700, TC-700EX and PD-5 series

SPM-133 HYT X33 Multi-Pin Radios (add $20): TC-980

SPM-143 HYT X43 Multi-Pin Radios (add $20): PT-790, TC-3000, TC-3600, TC-610P, TC-780, TC-780MPT

SPM-155 HYT X55 Multi-Pin Radios (add $20): PD782, PD785, PD702, PT580

SPM-163 HYT X63 SIngle pin: TC-310, TC-320

SPM-100 ICOM X00 Two Pin Radios: IC-02AT, IC-03AT, IC-04AT, IC-2GAT, IC-2GXAT, IC-4008A, IC-4088A, IC-80AD, IC-91A, IC-91AD, IC-F3, IC-F3S, IC-F4, IC-F4S, IC-F4TR, IC-H16, IC-H2, IC-H6, IC-J12, IC-M5, IC-Q7A, IC-T22A, IC-T22E, IC-T42A, IC-T42E, IC-T7H, IC-T90, ICTH7H, IC-U12, IC-U16, IC-W32A

SPM-130 ICOM X30 Two Pin Radios: IC-3GT, IC-F11, IC-F11S, IC-F21, IC-F21BR, IC-F21GM, IC-F21S, IC-F3011, IC-F3021, IC-F31, IC-F3G, IC-F3GS, IC-F4011, IC-F4021, IC-F43GS, IC-F43GT, IC-F43TR, IC-F4G, IC-F4GS, IC-F4GT, IC-U82, IC-V8, IC-V82

SPM-130s ICOM X30s Two Pin w/ Screw Radios: F33G, F-51, F-61, IC-3GT, IC-F14, IC-F21BR, IC-F21GM, IC-F24, IC-F3021, IC-F302IT/S, IC-F31, ICF3GS, IC-F4021, IC-F402IT/S, IC-F43GS, IC-F43GT, ICF43TR, IC-F4G, IC-F4GS, IC-F4GT, IC-V85

SPM-110 ICOM X10 Multi-Pin Radios (add $20): IC-F3061T/S, IC-F30G, IC-F30GS, IC-F30GT, IC-F3161, IC-F31GS, IC-F31GT, IC-F4061T/S, IC-F40G, IC-F40GS, IC-F40GT, IC-F4161, ICF-4161, IC-F50, IC-F50V, IC-F60, IC-F60V, IC-F70, IC-F80, IC-M88

SPM-120 ICOM X20 Multi-Pin Radios (add $20): IC-F9011, IC-F9021

SPM-101 KENWOOD X01 Two Pin Radios: TH-22AT, TH-235A, TH-28A, TH-42AT, TH-48A, TH-77A, TH-78A, TH-D7A(G), TH-F6, TH-F6A, TH-G71A, TH-K2AT, TK-208, TK-2100, TK-2102, TK-2130, TK-2160, TK-2170, TK-220, TK-2200, TK-2200LP, TK-2212L, TK-2300, TK-2360, TK-2302VK, TK-240, TK-2400, TK2402, TK-240D, TK-248, TK-250, TK-260, TK-260D, TK-260G, TK-270, TK-270G, TK-272G, TK-308, TK-3100, TK-3101, TK-3102, TK-3130, TK-3131, TK-3160, TK-3170, TK-3173, TK-320, TK, 3200, TK-3200LP, TK-3212L, TK-3230, TK-3230XLS, TK-3300, TK-3302UK, TK-3360, TK-340, TK-3400, TK-3402, TK-340D, TK-348, TK-350, TK-353, TK-360, TK-360G, TK-370, TK-370G, TK-372G, TK-373, TK-430, TK-431, TK-2312, TK-3312

SPM-111 KENWOOD X11 Multi-Pin Radios (add $20): NX-200, NX-300, TK-190, TK-2140, TK-2180, TK-280, TK-290, TK-3140, TK-3148, TK-3180, TK-380, TK-385, TK-390, TK-480, TK-481, TK-5210, TK-5220, TK-5310, TK-5320, TK-5400

SPM-103 MOTOROLA X03 Two Pin Radios: AXU4100, AXV5100, BPR40, CLS1110, CLS1410, CLS1413, CLS1450C, CLS1453C, CP100, CP150, CP185, CP200, CP88, CT125, CT150, CT250, CT450, CT450LS, DTR, DTR410, DTR550, DTR650, GP200, GP2000, GP300, GP308, GP68, GP88, GTI, GTX, LTS2000, P040, P080, P110, P1225, P1225LS, P200, P2000, PR400, RDK, RDU, RDU2020, RDU2080D, RDU4100, RDU4160D, RDV, RDV2020, RDV2080D, RDV5100, RMM2050, RMU2040, RMU2080, RMU2080D, RMV2080, SP10, SP21, SP50, VL50, XTN, XTN446, XTN500, XTN600, XU1100, XU2100, XU2600, XV1100, XV2100, XV2600, XU2100, XU2600, XV1100, XV2100, XV2600

SPM-123 MOTOROLA X23 Multi-Pin Radios (add $20): GP900, GP9000, HT1000, MT1500, MT2000, MTS2000, MTX8000, MTX838, MTX900, MTX9000, MTX960, MTXLS, PRI500, X1500, XTS1500, XTS2000, XTS2500, XTS3000, XTS3500, XTS5000, GP1200

SPM-133 MOTOROLA X33 Multi-Pin Radios (add $20): CBPRO, GP1280, GP140, GP320, GP328, GP329, GP338, GP339, GP340, GP360, GP380, GP640, GP650, GP680, GP960, HT1250, HT1250LS, HT1550, HT1550XLS, HT750, JT1000, MTX8250, MTX8250LS, MTX850, MTX850LS, MTX9250, MTX950, PR860, PRO5150, PRO5350, PRO5450, PRO5550, PRO5750, PRO7150, PRO7350, PRO7450, PRO7550, PRO7750, PRO9150, PTX700, PTX760, PTX780

SPM-143 MOTOROLA X43 Multi-Pin Radios (add $20): EX500, EX600, EX600XLS, GL2000, GP328 PLUS, GP338 PLUS, GP344, GP388, PRO5151 Elite, EX560

SPM-183 MOTOROLA X83 Multi-Pin Radios (add $20): APX 7000, XPR6300, XPR6500, XPR6550, APX 7500, XPR6100, XPR6350, XPR6580

SPM-1M11 MOTOROLA XM11 Multi-Pin Radios (add $20): XPR3300, XPR3500

SPM-101 OLYMPIA P324 X01 Two Pin Radios: P324

SPM-102 VERTEX X02 One Pin Radios: FT-10R, FT-250, FT-40R, FT-50R, FT-60R, VX-10, VX-110, VX-150, VX-1R, VX-2E, VX-2R, VX-300, VX-400, VX-5R, VXF-1

SPM-122s VERTEX X22s One Pin w/ Screw Radios: VX-130, VX-131, VX-132, VX-160, VX-180, VX-210, VX-210A, VX-230, VX-231, VX-350, VX-351, VX-354, VX-400, VX-410, VX-420, VX-427, VX-450, VX-454, VX-459

SPM-132 VERTEX X32 Multi-Pin Radios (add $20): VX-820, VX-821, VX-824, VX-829, VX-871, VX-874, VX-879, VX-920, VX-921, VX-924, VX-929, VX-971, VX-974, VX-979, VX-P820, VX-P920

SPM-142 VERTEX X42 One Pin Radios: VX-120, VX-127, VX-170, VX-177, VX-6R, VX-7R and EVX-S24

Pryme Connector Chart

Please see PYRME for the most up to date version of this warranty.

PRYME Radio Products warrants this product against defects in materials or workmanship for a period of one year from the date of retail purchase.

PRYME will repair or replace a defective unit, at our option, without charge for parts or labor. The limited warranty is extended only to the original purchaser and is valid only to consumers in the United States and Canada. It does not cover damage or failure caused by or attributable to Acts of God, abuse, misuse, improper or abnormal usage, faulty installation, improper maintenance, lightning, or other incidences of excessive voltage, or any tampering or repairs by other than a PRYME authorized repair facility. It does not cover replacement of consumable parts, transportation costs, or damage in transit. Repair or replacement under the terms of this warranty does not extend the terms of this warranty.

This warranty can only be modified by an office of PRYME Radio Products, and then only in writing. Should this product prove defective in workmanship or material, the consumer’s sole remedies shall be such repair or replacement as provided by the terms of this warranty. Under no circumstances shall PRYME Radio Products be liable for any loss or damage, direct, consequential, or incidental, arising out of the use of or inability to use this product. Some states do not allow limitations on how long an implied warranty lasts or the exclusions or limitations of incidental or consequential damages, so the above limitations or exclusions may not apply to you.

This warranty gives you specific legal rights. You may also have other rights, which may vary, from state to state. For support or warranty service on your PRYME product, contact us at 1-800-666-2654 or visit us on the web at www.PRYME.com.

© 2011 PRYME Radio Products, Brea CA. All rights reserved. PRYME® and PRYME BLU™ are trademarks owned by PRYME Radio Products. All other product or service names are the property of their respective owners.

DISCLAIMER: The Bluetooth wireless link used by PRYME BLU products is an open standard, unsecured technology. As such, it is not recommended for first-responder or other mission critical users.
